RN HYDROMAX – UNIVERSAL HYDRAULIC TEST BENCH
By : Design & Simulation, Division
Detail Description
A heavy duty Test Bench with advanced
safety features which not only helps the
users to test the various types of hydraulic
pumps of the C-Vehicles, AM-50 Mobile
Bridges and Recovery vehicles but also
provides in-house testing facility for
hydraulic hose pipes and hydraulic valves
such as PRVs and Distribution Valves
thereby assisting in improving quality and
reliability of repaired equipment.
Short description
Key Features
| Feature | Detail |
|---|---|

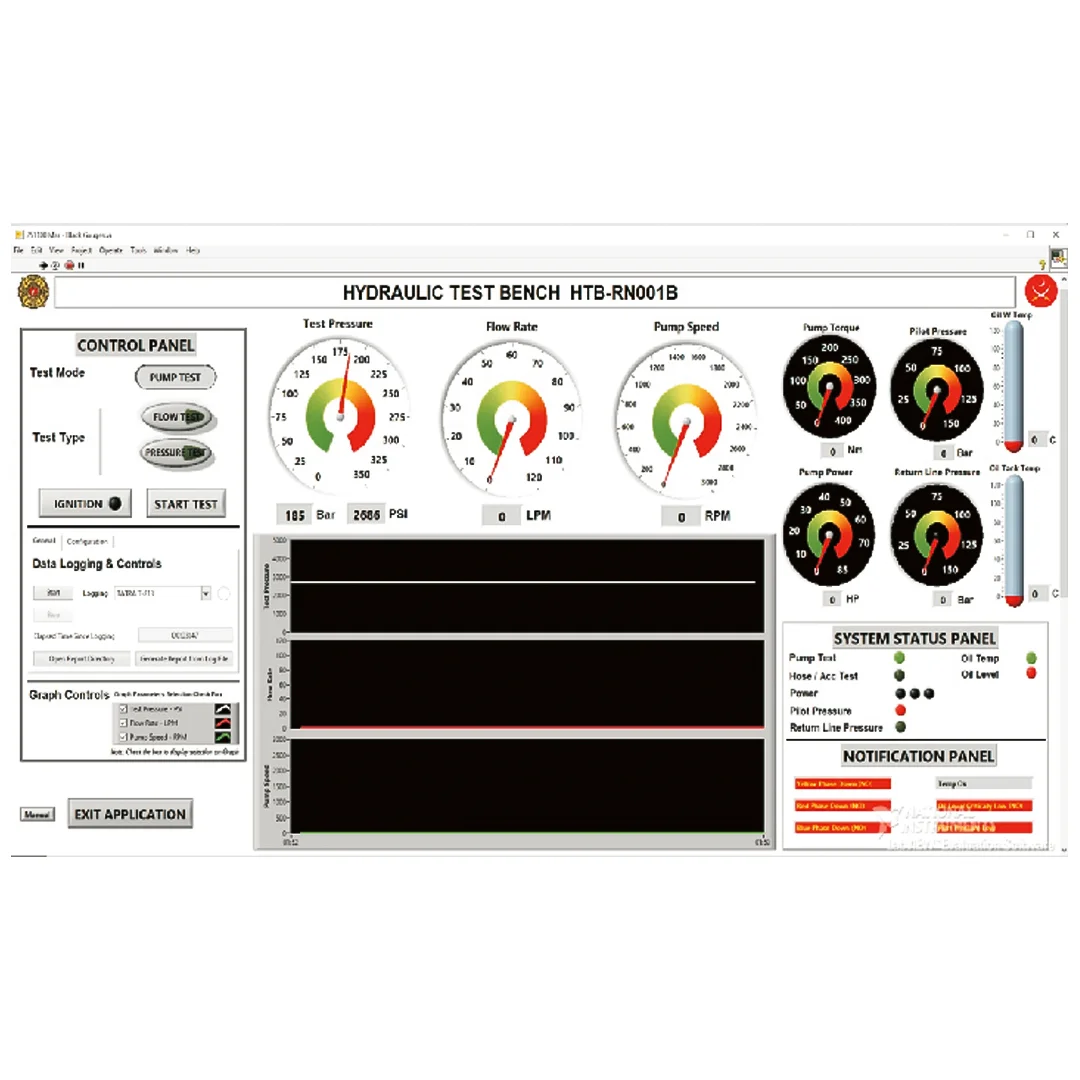

| Advanced Testing and Data Acquisition System | The system supports testing of pressure and flow rate up to 250 Bars and 120 LPM, with data acquisition facilitated through NI cards. The GUI is developed in the NI LabVIEW environment, designed for use on a touch screen panel. Additionally, the system features automatic report generation and secured user login for enhanced security and efficiency. |
