LASER RANGE FINDER (LRF-786) REPAIR FACILITY
Detail Description
Short description

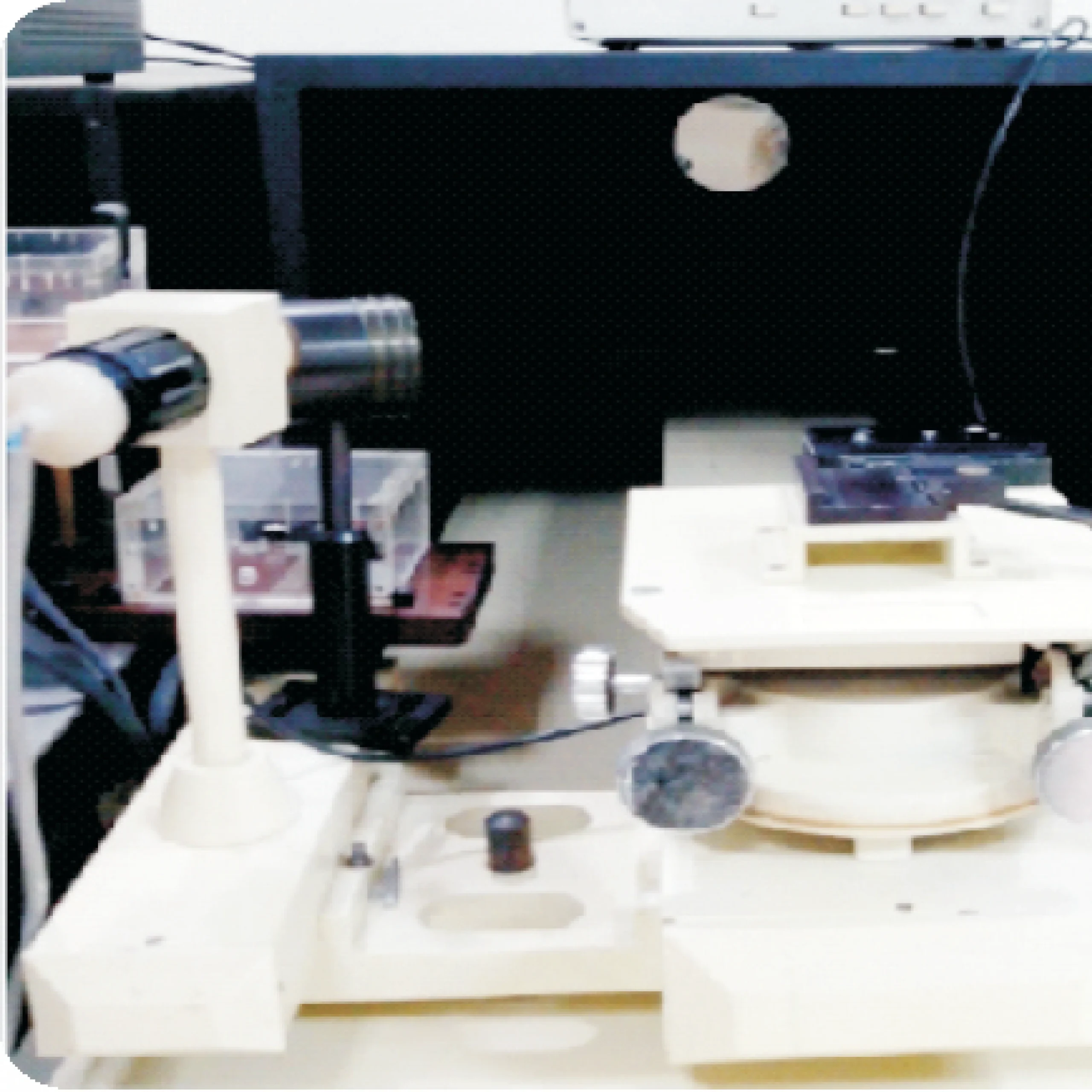

BORE SIGHT TESTER
We offer precise alignment and calibration services for the LRF 786 using specialized Bore Sight Tester. It ensures proper alignment of the transmitting, receiving, and sighting axes. Additionally, the equipment is used to check and align the transmitter and reticle, guaranteeing accurate targeting and system performance. Post-repair calibration ensures that the LRF 786 meets all operational alignment standards for reliable field use.

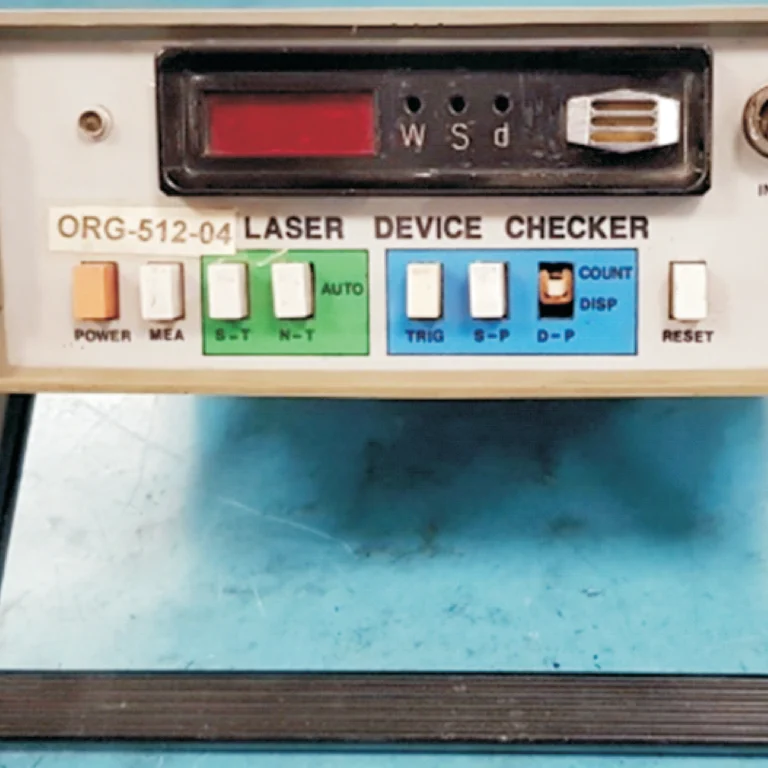

LASER DEVICE CHECKER
We offer specialized testing and calibration services for the LRF 786P using the Laser Device Checker Equipment. This advanced diagnostic platform is designed to adjust the transmitter operating voltage with precision and verify the integrity and consistency of laser pulses. By using this equipment, we ensure the LRF 786P delivers stable, correctly-tuned laser output, maintaining peak performance and compliance with operational safety and accuracy standards

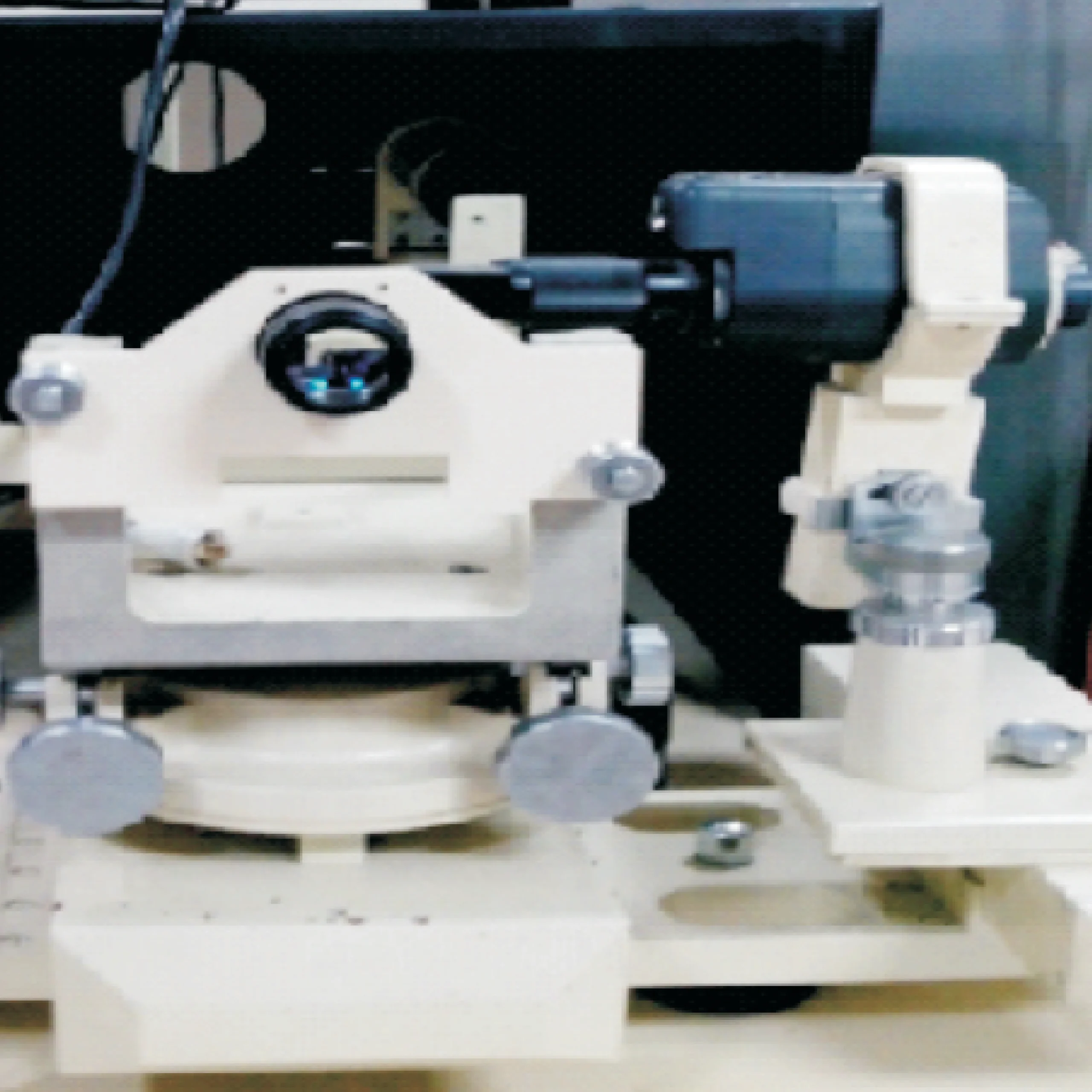

TRI-AXIAL PARALLELISM CORRECTION DEVICE
This specialized equipment enables exact synchronization of the transmitting, receiving, and sighting axes critical for ensuring accurate target acquisition and optimal laser performance. This level of alignment is essential for mission-critical applications, and our facility ensures each unit is restored to exacting military-grade standards.
INTERCONNECT CARD
Our facility employs the Interconnect Card Test Equipment to perform in-depth diagnostics and precision repair of the LRF 786P’s internal electronic architecture. This test bench is engineered to verify the integrity of signal pathways and ensure proper interconnection among all embedded PCBs and modules
LOGIC MODULE
We provide expert-level testing and repair services for the LRF 786 using specialized Logic Module Test Equipment. This advanced platform is designed to diagnose, validate, and restore the functionality of the logic card—an essential control component of the system. The test bench performs precise checks on range calculations, test points (TPs), and internal logic operations to ensure signal processing integrity and decision-making accuracy.
POWER SUPPLY MODULE
Our advanced repair services for the LRF 786P/Q include thorough evaluation using the Power Supply Module Test Equipment. This specialized bench is designed to test and repair the system’s control card while precisely verifying low, medium, and high voltage outputs. The equipment ensures stable power distribution across all subsystems, detecting voltage fluctuations, faults, or regulation issues.
